Landing Legs for Trailers and Container Chassis
: In stock
$675.00 $875.00
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
JOST and AXN Legs for sale

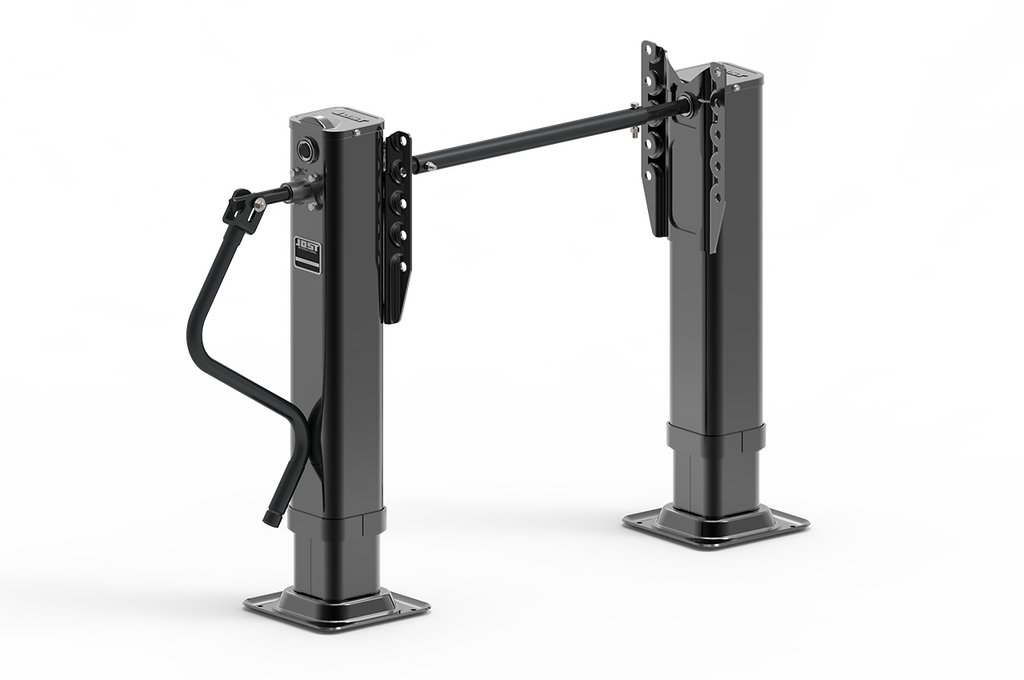

STANDARD A400 SERIES LANDING GEAR OVERVIEW
A400.T18.17 Landing Legs
JOST’s foundational trailer landing gear series, the Standard A400 Series features all of the key benefits that set JOST landing gear products apart from the competition. Complete with an internal gearbox and a reinforced design that adds strength, durability, and functionality, the Standard A400 Series is the go-to landing gear series for any commercial trucking application.
- No external gearbox
- 10 bolt mounting pattern adds mounting rigidity
- Reinforcing strap at the bottom of the upper housing for added strength
- Austempered ductile iron gears will not wear out
- Double “D” style shaft allows crank force to go directly into the gearbox
Capacities & Ratings:
- Max Static Load Rating* 160,000 lbs
- Rated Lift Capacity** 55,000 lbs
- Sideload Capacity* 29,000 lbs / set
* When properly braced on a trailer
** With 100ft-lbs input torque
Gear Ratio:
- High Gear: 3.5 turns/inch
- Low Gear: 32 turns/inch
